| Stockcode | : | 670293 |
| Type | : | CNC Machining Centres |
| Subtype | : | Universal |

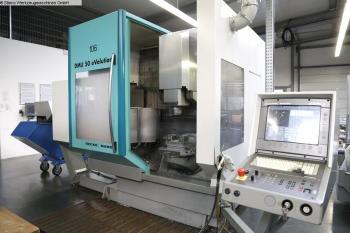

| Manufacturer | : | DECKEL MAHO |
| Model | : | DMU 50 EVOLUTION |
| Year | : | 2000 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 500mm
y-travel 420mm z-travel 380mm control MillPlus Heidenhain Main spindle power capacity at 100 % load 25kW power capacity at 40% ED 35kW turning speeds 18.000U/min Torque (40 / 100%) 130 / 87Nm tool taper SK 40 feeds rapid traverse X-axis 50m/min rapid traverse Y-axis 50m/min rapid traverse Z-axis 50m/min feed power 5kN tool magazin: tools in tool magazin 60 max. tool length 200mm max. tool diameter 50mm max. tool-dia with free toolbox 100mm tool changing time 5sec work table: NC-Schwenkrundtisch surface area 500 x 380mm center bore 30 H6 T-slot - distance 63 - 14H7mm swivelling range 0° / +108° (B-Achse) swivelling range 360° / 0,001° (C-Achse) Rapids C - Axes 50min -1 rapid traverse B-axis 40min -1 max. table load 200kg total power requirement 46kW weight of the machine ca. 6,5t dimensions of the machine ca. 4,7 x 5,4 x 2,8m Equipment Documents Chip conveyor Coolantsystem B-axis 0,001° C-axis hydraulic system Tool Magazine 60 pos. Other information 5 Axis - CNC - Machining-Center Universal DECKEL MAHO - DMU 50 eVolution - Swiveling-Rotary-Table - Vice / tooling not included - Spindle-Hrs.: ca. 10.100h | ||
