| Stockcode | : | 670290 |
| Type | : | CNC Machining Centres |
| Subtype | : | Universal |
| Manufacturer | : | KEPPLER |

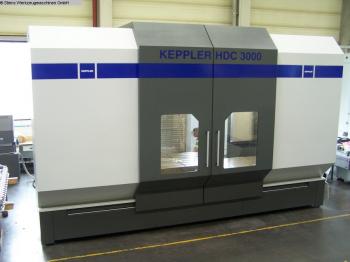

| Model | : | HDC 3000 |
| Year | : | 2014 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 3.000mm
y-travel 1.500mm z-travel 1.400mm control iTNC 530 Heidenhain Milling Spindle: Number of revolutions max. 10.000rpm power capacity max. 58,6kW max. Torque 140Nm tool taper HSK 100 A A-Axis +/- 185° B-Axis +/- 185° resolution A/B: 0,001° internal coolant system feed 60bar NC-Rotary table: table surface area 1.250 x 1.600mm C-Axis 0,001° table turning speeds 10U/min max. Torque 14.000Nm max. table load 6.000kg number of T-slots 7 ( 6+1 ) T-slots 6x 22H9 / 1x 22H7 Tool-Presetter: number of toolpositions 60pos. tool taper HSK 100 A max. tool diameter 125mm max. tool-dia with free toolbox 250mm max. tool length 400mm max. tool weight 25kg change time max. 20sec max. total weight 600kg feeds: rapid traverse ( X / Y / Z ) 27 / 30 / 30m/min feed speeds X: 27.000mm/min feed speeds Y/Z: 30.000mm/min total power requirement 80kVA weight of the machine ca. 33t dimensions of the machine ca. 8,5 x 8,5 x 4,0m Equipment Documents elektr. hand wheel NC-rotary table turning milling head Coolantsystem through spindle coolant 60bar Automatic Tool Changer 60pos. Chip conveyor full splash guard Other information 6 - Axis - CNC - Machining Center Universal KEPPLER - HDC 3000 - DEMONSTRATION MACHINE - TOP-CONDITION!!! - NC-Rotary Table - Swivel-/Turning-Millingspindle | ||
