| Stockcode | : | 670289 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |
| Manufacturer | : | DECKEL MAHO |

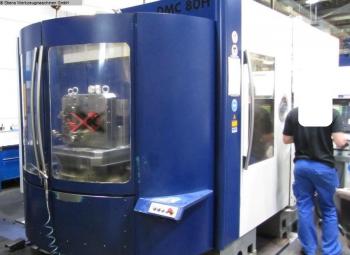

| Model | : | DMC 80 H |
| Year | : | 1999 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 800mm
y-travel 710mm z-travel 710mm control Siemens840 D Main spindle: turning speed range - main spindle 0 - 10.000min/-1 power capacity - main spindel 25 / 37kW max. Torque 300 / 440Nm Tool bore HSK A-100 tool clamping 25kN internal coolant system feed pallet changer: numbers of pallets 2pos. size of pallet 500 x 630mm max. palett load 900kg number of T-slots 5 T-slot - width 4x 14H12 / 1x 14H7mm table turning speeds max. 19min/-1 tension force 120kN B-Axis 360° tool magazin: number of toolpositions 40pos. max. tool diameter 120mm max. tool-dia with free toolbox 200mm max. tool length 450mm max. tool weight 25kg max. total weight 400kg feeds: feed speeds 1 - 36.000mm/min rapid traverse ( X / Y / Z ) 36m/min total power requirement 80kVA weight of the machine ca. 13,0t dimensions of the machine ca. 8,0 x 6,5 x 3,2m Equipment Documents Chip conveyor Coolantsystem through spindle coolant Signal-Light B-axis 360° hydraulic system Automatic Tool Changer 40 pos. pallet changer 2 pos. Rotary screen breakage control Other information CNC - Machining Center Horizontal DECKEL MAHO - DMC 80 H - 2-pos. palletchanger - 40-pos. tool magazine | ||
| View all |
|
DECKEL MAHO (25) DMC 80 H (1) CNC Machining Centres (475) Horizontal (148) |
Germany
