| Stockcode | : | 670286 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |
| Manufacturer | : | CROSS HUELLER |

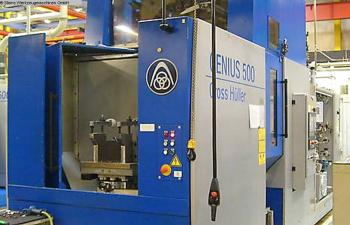

| Model | : | GENIUS 500 |
| Year | : | 2004 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 630mm
y-travel 650mm z-travel 800mm control Sinumerik 840 D Siemens Main spindle: Max. rpm 16.000min/-1 power capacity - main spindel 29kW max. Torque 85 / 134Nm spindle bearing diameter 74mm tool taper HSK 63 tool clamping 22kN pallet changer: numbers of pallets 2 size of pallet 630 x 500mm max. table load 800kg B-Axis 0,001° Tool-Presetter: number of toolpositions 57pos. max. tool diameter 95mm max. tool-dia with free toolbox 230mm max. tool length 600mm max. tool weight 10kg change-time chip to chip 2,5sec feeds: rapid traverse ( X / Y / Z ) 120 / 170 / 75m/min Accelaration 15 / 20 / 10m/s² Feed force 6kN distances: distance spindle nose and table min. 130mm distance spindle center to table min. 185mm work height max. 1.230mm total power requirement ca. 40kW weight of the machine ca. 20,0t dimensions of the machine ca. 8,0 x 4,0 x 3,6m Other information CNC - Machining Center Horizontal CROSS HÜLLER HILLE - Genius 500 - 2-pos pallet changer | ||
