| Stockcode | : | 670283 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |
| Manufacturer | : | DECKEL MAHO |

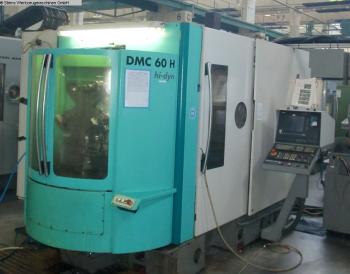

| Model | : | DMC 60 H HI-DYN |
| Year | : | 2000 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 600mm
y-travel 560mm z-travel 560mm control Sinumerik 840 DSiemens Main spindle: turning speed range - main spindle 0 - 8.000min/-1 power capacity - main spindel 20 / 13kW Tool bore HSK 63 A internal coolant system feed pallet changer: numbers of pallets 2 size of pallet 400 x 500mm max. table load 1x 350 / 2x 300kg number of T-slots 6 T-slot - width 6x 14H12 / 1x 14H7mm Number of revolutions max. 25,7rpm tension force 80kN B - Axis 0,001° Tool-Presetter: number of toolpositions 40pos. max. tool diameter 90mm max. tool-dia with free toolbox 160mm max. tool length 350mm max. tool weight 10kg feeds: feed speeds 1 - 60.000mm/min rapid traverse 60m/min Feed force X,Z: 9,6 / Y: 8,0kN measuring system input unit 0,001mm total power requirement 80kVA weight of the machine ca. 12t dimensions of the machine ca. 6,5 x 2,8 x 2,9m Equipment Documents Chip conveyor Coolantsystem high pressure coolant 40bar through spindle coolant B-axis 0,001° spindle oil cooler pallet changer Renishaw vorbereitet / prepared Other information CNC-Machining Center Horizontal DECKEL MAHO - DMC 60 H hi-dyn Operating-Hours: approx. 25.300h Shown clamping-systems are NOT with the machine! | ||
| View all |
|
DECKEL MAHO (25) DMC 60 H HI-DYN (1) CNC Machining Centres (475) Horizontal (148) |
Germany
