| Stockcode | : | 670282 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |

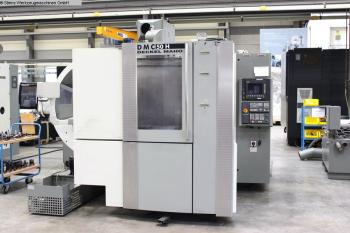

| Manufacturer | : | DECKEL MAHO |
| Model | : | DMC 50 H (#452) |
| Year | : | 2001 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 560mm
y-travel 510mm z-travel 560mm control Siemens 840D feeds - fine adjustment 50000mm/min rapid traverse 50m/min numbers of pallets 2 table surface area 400 x 400mm max. table load 250kg B-axis (table) 360 x 1° turning speed range - spindle 18.000U/min power capacity - milling spindle 15 / 10kW tool taper SK 40 DIN 69871 Tool changer 40pos. max. tool weight 8kg max. tool length 300mm max. tool diameter 85mm max. tool-dia with free toolbox 140mm total power requirement 64kW weight of the machine ca. 9t dimensions of the machine ca. 3,6 x 3,2 x 2,6m Equipment through spindle coolant high pressure coolant paper band filter pallet changer full splash guard Chip conveyor Other information Horizontal Machining Centre DECKEL MAHO - DMC 50H Control Name: Sinumerik 840D Manufacturer: Siemens Kind/Type: 3-D CNC control Technical Data Spindle taper: SK 40 DIN 69871 Feed rate longitudinal/transverse/vertical: 50000/50000/50000 mm/min Rapid traverse longitudinal/transverse/vertical: 50/50/50 m/min Working area 1 Longitudinal: 560 mm Cross: 510 mm Vertical: 560 mm Equipment Cabine Chip conveyor Direct measuring system Pick-up toolchanger Application: Horizontal Type of magazine: Wheel Tool changer plane: horizontal Type of gripper: Pick up Number of tools: 40 Tool change time chip to chip horizontal approx.: 3,9 Max. tool weight: 8 Kg Max. tool length: 300 mm Max. tool diameter: 85 mm Max. tool dia. with free neighbouring pockets: 140mm Clamping System: ISO/DIS 7388/II Type NC rotary table with pallet changer Type of Measuring system: Direct measuring system Table surface: 400 x 400 mm Maximum load (table centre): 250 Kg Clamping grid: 50 x 50 mm Rotation speed max.4. Axis: 40 rpm 4. Axes (swivelling range): 360 x 1 degree Motor spindle 18.000 rpm Type of main drive: AC Drive power (100% DC): 10 kW Drive power (40% DC): 15 kW Torque (100% DC): 87 Nm Torque (40% DC): 130 Nm Speed range: -18000 rpm ICS 40 bar form AD Internal coolant supply through the spindle form A-D SK40 / HSK63 (23 l/min/40 bar) (6.2 gal/min at 580 psi) total capacity 950l / 287.9 gal, incl. chip conveyer (scraper type) chip disposal rearside(Standard) and gravity-band-filter | ||
