| Stockcode | : | 670279 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |
| Manufacturer | : | HECKERT |

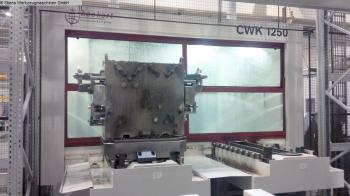

| Model | : | CWK 1250 #1 |
| Year | : | 2002 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 1.850mm
y-travel 1.250mm z-travel 1.250mm control Fanuc 16i Main spindle: turning speed range - main spindle 20 - 6.000min/-1 power capacity - main spindel 22 / 37kW max. Torque 720 / 1.200Nm Tool bore SK 50 spindle diameter in front bearing 100mm pallet changer: numbers of pallets 2 size of pallet 1.000 x 1.000mm max. table load 5.000kg b-axis 1° Max. rpm 5min/-1 table hole 97 x M20mm center hole 100mm Swivel diameter B-axis 1.800mm change time of pallets 47sec tool magazin: number of toolpositions 240pos. max. tool diameter 250mm max. tool length 600mm max. tool weight 35kg change-time chip to chip max. 18sec feeds: feed speeds 1 - 24.000mm/min Feed force 20kN rapid traverse ( X / Y / Z ) 30m/min total power requirement -kW weight of the machine ca. 26,5t dimensions of the machine ca. 9,5 x 7,5 x 4,5m Equipment Documents Chip conveyor Coolantsystem high pressure coolant 30 - 50 bar through spindle coolant Signal-Light B-axis 1° spindle oil cooler hydraulic system pallet changer 2 pos. Automatic Tool Changer 240 pos. Renishaw breakage control Other information CNC - Machining Center Horizontal HECKERT - CWK 1250 - incl. 15 machine pallets aditionally | ||
