| Stockcode | : | 670276 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |

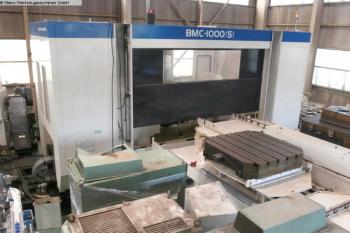

| Manufacturer | : | TOSHIBA |
| Model | : | BMC 1000 / 5 |
| Year | : | 2002 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 1.500mm
y-travel 1.500mm z-travel 1.250mm control Tosnuc 888 Main spindle: turning speed range - main spindle 40 - 10.000min/-1 power capacity - main spindel 18,5 / 22kW tool taper MAS BT 50 spindle diameter 90mm pallet changer: numbers of pallets 6pos. size of pallet 1.000 x 1.000mm B-Axis 360° A-Axis 10 - 100° max. table load 2.500kg Tool-Presetter: number of toolpositions 120pos. tool taper MAS BT 50 max. tool diameter 125mm max. tool-dia with free toolbox 250mm max. tool length 550mm max. tool weight 25kg feeds: feed speeds 12.000mm/min total power requirement 92kVA weight of the machine ca. 56,0t dimensions of the machine ca. 15,0 x 7,0 x 4,5m Equipment Chip conveyor Coolantsystem B-axis 360° A-Axis 10 - 100° hydraulic system Automatic Tool Changer 120 pos. pallet changer 6 pos. Other information CNC - MachiningCenter Horizontal TOSHIBA - BMC 1000 / 5 - 5 Axis - 2pos. pallet-changer | ||
