| Stockcode | : | 670203 |
| Type | : | Grinding |
| Subtype | : | Universal |
| Manufacturer | : | WEMA GLAUCHAU |
| Model | : | SP 1000 |
| Year | : | 2010 |
| Price | : | P.O.A. |
| Description | : | |
|

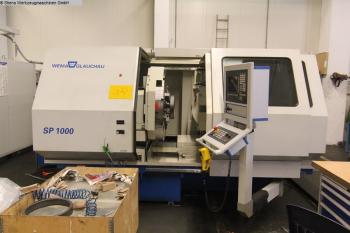

Face Grinding Machine
grinding diameter 400 - 1.000mm dimensions of grinding wheel max. 600 x 80 x 304,8mm control Siemens Sinumerik Workhead. Travel 700mm swivelable +/- 1° power capacity 5,5kW Number of revolutions 1 - 75rpm spindle head A8 / DIN 55026 bore 58,5mm max. workpiecediameter 400 - 1.000mm Max. workpiece - width 280 (140)mm loadability on spindle-head max. 6.100N face grinding attachment Travel 340mm longitudinal adjustment max. 140mm power capacity 37kW taper diameter 200mm clamping length 630mm grinding diameter 400 - 1.000mm dimensions of grinding wheel 600 x 80 x 304,8mm dressing device Travel 110mm measuring system resolution capability 0,0027° cutting speed max. 45m/s adjustment 0,0001° total power requirement 70kW weight of the machine ca. 12,0t dimensions of the machine ca. 6,0 x 6,0 x 2,8m Equipment Documents paper band filter Coolantsystem face plate grinding wheels 1 x Other information CNC - Face Grinding Machine WEMA GLAUCHAU - SP 1000 | ||
| View all |
|
WEMA GLAUCHAU (1) SP 1000 (1) Grinding (304) Universal (160) |
Germany
