| Stockcode | : | 670197 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |

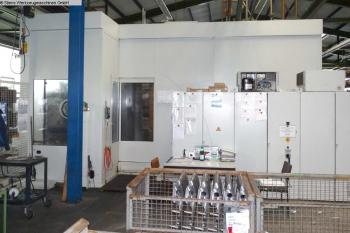

| Manufacturer | : | DOERRIES SCHARMANN |
| Model | : | SOLON 4 |
| Year | : | 1996 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 1.600mm
y-travel 1.600mm z-travel 1.000mm control Siemens 840 C Main spindle: turning speed range - main spindle 12 - 3.500min/-1 no. of turning speeds 3 power capacity - main spindel 45kW max. Torque 2.200Nm tool taper SK 50 w - axis 600mm pallet changer: numbers of pallets 10 size of pallet 1.000 x 1.000mm max. load 3.000kg max. workpiece sizes Ø 1.650 x 1.800mm Table interfering diameter 1.600mm Collision diameter 1.100mm B-Axis 0,001° distance spindle nose and table W=0 : 375mm Tool-Presetter: number of toolpositions 160pos. max. tool diameter 100mm max. tool-dia with free toolbox 400mm max. tool length 700mm max. tool weight 40kg feeds: rapid traverse ( X / Y / Z ) 17 / 17 / 17m/min feed speeds 1 - 17.000mm/min total power requirement -kW weight of the machine ca. +/- 50,0t dimensions of the machine ca. 20,0 x 15,0 x 5,0m Equipment Documents Chip conveyor Coolantsystem high pressure coolant 50 bar through spindle coolant oil mist extraction hydraulic system Automatic Tool Changer 160 pos. pallet changer 10 pos. Renishaw Other information CNC - MachiningCenter Horizontal DOERRIES SCHARMANN - Solon 4 - 10pos. palletchanger - 160pos. toolchanger | ||
