| Stockcode | : | 670193 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |
| Manufacturer | : | MORI SEIKI |
| Model | : | SV 403 |
| Year | : | 2002 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 600mm

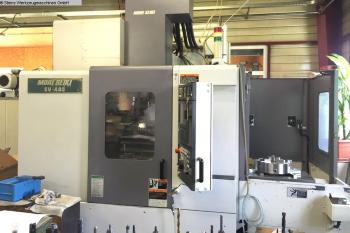

y-travel 430mm z-travel 460mm control MSG 501 distance spindle /table 150 - 610mm Main spindle: Max. rpm 12.000min/-1 power capacity - main spindel 22 / 18,5kW tool taper BT 40 internal diameter 70mm work table: table surface area 700 x 400mm max. table load 500kg T-slots 5x 18 x 100mm Tool-Presetter: number of toolpositions 30pos. max. tool diameter 80 (125)mm max. tool length 300mm max. tool weight 8kg change-time chip to chip ca. 2,8sec change-time tool to tool ca. 0,9sec feeds: rapid traverse 32m/min feed speeds 1 - 16.000mm/min Tipp feed 0 - 1.260mm/min pallet changer: numbers of pallets 2 pos. total power requirement 47,4kVA weight of the machine ca. 5,2t dimensions of the machine ca. 4,0 x 3,5 x 2,8m Equipment Documents Chip conveyor Coolantsystem through spindle coolant high pressure coolant 15 bar Signal-Light interface 4. axis spindle oil cooler hydraulic system pallet changer 2 pos. Other information CNC - Machining Center Vertical MORI SEIKI - SV 403 - incl. 2 pos. pallet changer | ||
| View all |
|
MORI SEIKI (54) SV 403 (1) CNC Machining Centres (475) Vertical (370) |
Germany
