| Stockcode | : | 670191 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |

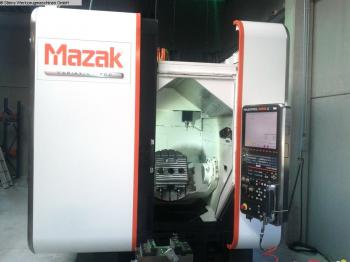

| Manufacturer | : | MAZAK |
| Model | : | VARIAXIS I-700 |
| Year | : | 2011 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 630mm
y-travel 1.100mm z-travel 600mm control Mazatrol Matrix 2 distance spindle nose and table hor.: 100 - 700mm distance Spindlenose and center of table vert.: 50 - 650mm Main spindle: turning speed range - main spindle 35 - 18.000min/-1 power capacity - main spindel 35 / 26kW internal diameter 70mm tool taper SK 40 work table: table surface area 700 x 500mm Swivel range A: - 120 / + 30° rotation range C: +/- 360° resolution A / C: 0,0001° number of T-slots 5 T-slot - distance 100mm center hole 50mm max. table load 700kg table height over floor 950mm Tool-Presetter: number of toolpositions 40pos. max. tool diameter 90mm max. tool-dia with free toolbox 130mm max. workpiece length 360mm max. tool weight 8kg change-time chip to chip 3,6sec max. total weight 228kg feeds: rapid traverse ( X / Y / Z ) 60 / 60 / 56m/min feed speeds 56.000mm/min switching time A: 90°/0,55sec switching time C: 90°/0,4 - 180°/0,7sec number of simltaneous controlled axis 5 Workpiece dimension: max. diameter 850mm height max. 500mm total power requirement max. 80,0kVA weight of the machine ca. 16,0t dimensions of the machine ca. 3,0 x 5,0 x 3,5m Equipment Documents Coolantsystem high pressure coolant 15bar through spindle coolant Chip conveyor Automatic Tool Changer 40pos. hydraulic system tool setting A-Axis -120° / +30° / 0,0001° C-axis +/-360° / 0,0001° elektr. hand wheel Other information 5 Axis - CNC - Machining Center Vertical MAZAK - Variaxis i-700 - Operating-Hours: ca. 5.500h Power-On ca. 1.600h Spindle hrs. - Vices shown on pictures are NOT equipped with the machine! | ||
