| Stockcode | : | 670190 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |

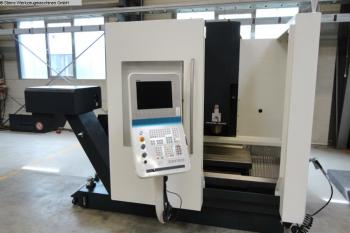

| Manufacturer | : | DECKEL MAHO |
| Model | : | DMC 635 V ECO |
| Year | : | 2011 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 635mm
y-travel 510mm z-travel 460mm control 810 D / 3D Siemens Main spindle: turning speed range - main spindle 20 - 8.000min/-1 power capacity - main spindel 13 / 8,4kW tool taper SK 40 DIN 69871 max. Torque 83 / 57Nm tension force 10kN work table: table surface area 790 x 560mm number of T-slots 4 + 1 T-slot - distance 100mm T-slot - width 4x 14H12 / 1x 14H7mm max. table load 600kg table height over floor 720mm Tool-Presetter: number of toolpositions 20pos. Max. mould width 80 / (130)mm max. tool length 300mm max. tool weight 6kg max. total weight 60kg feeds: rapid traverse 25m/min feed speeds 1 - 20.000mm/min total power requirement -kW weight of the machine ca. 4,5t dimensions of the machine ca. 3,5 x 4,0 x 2,7m Equipment Documents Automatic Tool Changer 20 pos. Chip conveyor direct probing tool setting Heidenhain TT 140 test probe Heidenhain TS 649 div. tooling SK 40 Other information CNC - MachiningCenter Vertical DECKEL MAHO - DMC 635 V eco - DEMONSTRATION-MACHINE ! - Top-Condition - Operating-Hours: ca. 200h Power-On / 60h Spindletime | ||
