| Stockcode | : | 669741 |
| Type | : | Milling |
| Subtype | : | Universal |
| Manufacturer | : | LAGUN |
| Model | : | FCM 1800 |
| Year | : | 1987 |
| Price | : | P.O.A. |
| Description | : | |
|

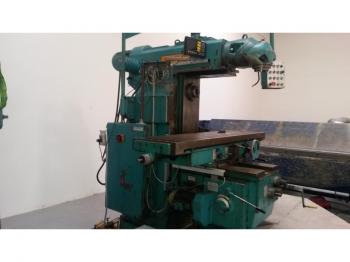

HORIZONTAL / VERTICAL UNIVERSAL
Table Size 400mm x 1800mm Table Swivel + / - 47 Degrees Table Longitudinal Traverse 1295mm Cross Travel 430mm Vertical Travel of Knee 508mm Horizontal Spindle ISO – 50 MMT Horizontal Spindle Speeds (18) 28 – 1400 RPM Feeds (18) Longitudinal 12 – 800 MM/PM Feeds (18) Vertical 3 – 241 MM/PM Rapid Traverse – Longitudinal and Cross 3000 MM/PM Rapid Traverse – Vertical 889 MM/PM Horizontal Spindle Motor 15 HP Feed Motor 4 HP Coolant .12 HP Universal Ram Head ISO – 50 MMT Ram Head Speeds (18) 28 – 1400 RPM Ram Traverse 639mm Ram Rapid Traverse 1270 MM/PM Ram Feeds – Variable 12 – 889 MM/PM Ram Spindle Motor 10 HP Ram Feed Motor 2 HP Max distance Ram in Vertical Plane to Table 508mm Distance Between Spindle and Over arm 152mm FLOORSPACE: 3962mm R-L x 3225mm F-B x 2286mm HI APPROXIMATE WEIGHT: 5200 KG | ||
