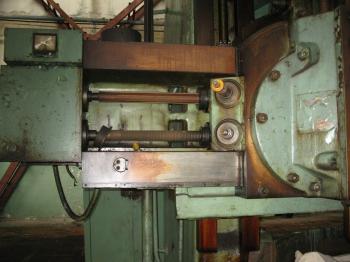

| Stockcode | : | 669500 |
| Type | : | Lathes |
| Subtype | : | VTL |
| Manufacturer | : | STANKO |
| Model | : | 1L532 |
| Year | : | 1979 |
| Price | : | P.O.A. |
| Description | : | |
|
ORIGIN: RUSSIA, 1979
CONDITION: Very Good TECHNICAL DATA: Faceplate diameter, mm. 2800 Max. workpiece diameter, mm. 3150 Max. workpiece hight, mm. 1600 Max. workpiece weight, according to faceplate rotation speed, kg:  from 1,25 to 40 r.p.m. 16000  from 50 to 63 r.p.m. 9000 Max. vertical head travel, mm:  horizontal 1720  vertical 1200 Vertical heads working feed speed, mm/rev 0,04÷16 Vertical heads fast feed, mm/min 5÷2000 Max. instrument section dimensions, mm. 63×40 Cross rail max. travel, mm. 1240 Cross rail travel speed, mm/min 360 Faceplate rotation speed  Ist degree, r.p.m. 1,25÷40  IInd degree, r.p.m. 50÷63 Main motor power, kW 55 Dimensions, mm. 4900×6520×5100 Weight of the machine, kg., appr. 43000 | ||
