| Stockcode | : | 667392 |
| Type | : | Gear |
| Subtype | : | Hobbers |
| Manufacturer | : | MODUL |
| Model | : | ZFWZ 05 |
| Year | : | 2011 |
| Price | : | P.O.A. |
| Description | : | |
|

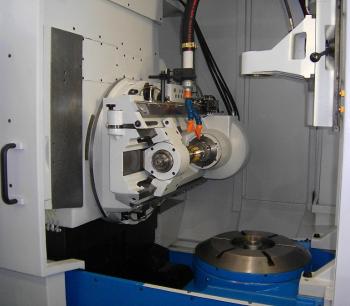

CNC Vertical Gear Hobbing Machine
New in: 1990/2011 Siemens 840D CNC Control Max. Workpiece diameter 500mm Max Module 10 Axial feeding travel 370mm Radial feeding travel 290mm Tangential feeding travel 220mm Helix angle 45 Grad Table diameter 550mm Max. Cutter diameter / length 200 / 250mm Table speeds 25rpm Hob speeds 50 – 400rpm Axial feed 0 – 10mm/WU Tangential Adjustment 0 – 2mm/WU Radial feed 0 – 5mm/WU Rapid travel X / Y / Z 1400 / 2000 / 700mm/min Machine weight 10000kgs Machine dimensions 3950 / 3850 /2800mm Complete With: Hob Arbors (used) Chip conveyor magnetic Fully enclosed guarding Manuals | ||
