| Stockcode | : | 667047 |
| Type | : | Sheet Metal |
| Subtype | : | Punching and Laser CNC |
| Manufacturer | : | AMADA |
| Model | : | APELIO II 245 |
| Year | : | - |
| Price | : | P.O.A. |
| Description | : | |
|

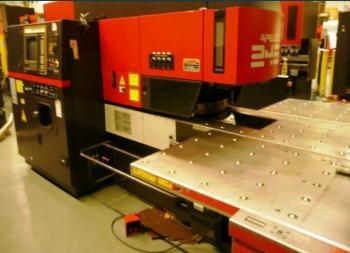

CNC COMBINATION PUNCH PRESS WITH 1.5KW LASER
specification 15 TONS CAPACITY 28 STATION 1.5 KW THICK TYPE TURRET COMBINATION LASER/PUNCH COMPLETE WITH POWER UNIT CHILLER ANDEXTRACTOR FITTED WITH ELECTRONIC LIGHT SCREEN GUARDING SYSTEM TYPE: 15 TONA CAPACITY PUNCH PRESS CONTROL: FANUC 04PLA NO OF STATIONS: 28 TURRET CONFIGURATION: 12 X 12.7 16 X 31. AXIS TRAVEL LASER: 1000 X 1270 X 260(Z) SHEET SIZE: 1000 X 1270 SHEET SIZE I REPOSITION: 1000 X 2540 MAX SHEET WEIGHT: 60 KG MAX SHEET THICKNESS: 6mm MS MAX SPEED X/Y AXIS: 28 M/PER/MIN LASER: FANUC 1000 HIGH SPEED CO'2 OSCILLATOR RATED OUTPUT: 1500W OUTPUT STABILITY: +/- 2% OUTPUT MODE SELECTION: PROGRAMMED CONTINUOUS WAVE PULSE LASER GAS: C0/2:NZ:HE=5:55:40 MAX THICKNESS MILD STEEL: 6mm MAX THICKNESS STAINLESS: 3mm LASER EXTRACTOR: INCLUDED POWER UNIT: INCLUDED CHILLE:INCLUDED POWER ON TIME FROM NEW: 20000 LASER ON TIME: 9500 MACHINE WEIGHT: 10000KG POWER REQ.: 40 KVA INCLUDING CHILLER | ||
