| Stockcode | : | 667040 |
| Type | : | Sheet Metal |
| Subtype | : | Punching and Laser CNC |
| Manufacturer | : | TRUMPF |
| Model | : | TC 600L |
| Year | : | - |
| Price | : | P.O.A. |
| Description | : | |
|

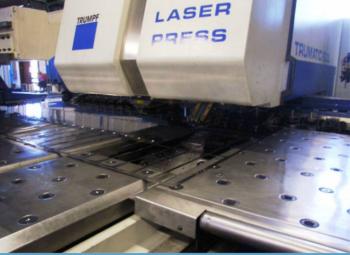

COMBINATION LASER PUNCH
1.5 KW LASER CAPACITY 20 TONS PUNCH CAPACITY ( LASER ON THIS MACHINE IS NOT WORKING NEEDED SOME WORK , SO WE ARE SELLING THIS MACHINE AS PUNCHING MACHINE) Y-Working Range Laser: 1280 mm X-Working Range Laser: 3085 mm Movement Y: 1370 mm Movement X: 3085 mm Laser power: 1500W Laser Type: TLF 1500 Turbo Maximum Punching Force: 220 kN CNC Controller: Siemens Sinumerik 840D X-Working Range Punch: 3085 mm Y-Working Range Punch: 1370 mm X-Working Range Punch Laser: 2585 mm Y-Working Range Punch Laser: 1280 mm Maximum Sheet Thickness: 8.0 mm Maximum Punch Diameter: 76.2 mm Maximum Weight of Workpiece: 200 kg Maximum Strokes per Minute: 600 Maximum Positioning Speed X-Axis: 90 Metres/Min Maximum Positioning Speed Y-Axis: 60 Metres/Min Maximum Positioning Speed Simultaneous: 108 Metres/Min Number of Tool Stations: 18 Stations Compressed Air Requirement: 25Nm3/h Electrical Connection: 65 kVA One Owner since new & Full Service History From Trumpf Accessories: Safety Light Barriers, 1 Off 5 Cutting Head,Chip Container, Dust Extractor, Chiller, Owners Manuals, | ||
