| Stockcode | : | 666986 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |
| Manufacturer | : | DMG |

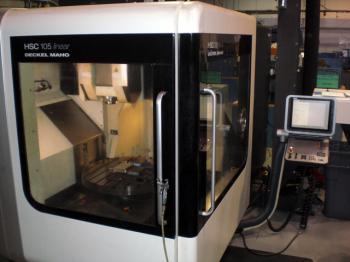

| Model | : | HSC105V |
| Year | : | 2008 |
| Price | : | P.O.A. |
| Description | : | |
|
Linear 5 Axis Machining Center Working Area: X-Axis (5-axes) mm: 1050 (1,110) In: 41.4 (43.7) Y-Axis mm: 800 In: 31.5 Z-Axis (5 axes) mm: 560 (600) In: 22.0 (23.6) Feed Drives: Feed Force X: Max. N/lbs.: 20.000/4,496 Feed Force Y: Max. N/lbs.: 11.000/2,475 Feed Force Z: Max. N/lbs.: 9.500/2,137 Feed Range: mm/min: 1-90.000 in/min: 0.04-3,543 Rapid Traverse X-, Y-, Z-Axis: M/min: 90 Ft/min: 295.2 Positioning Accuracy: P max on X,Y,Z Axes (direct Measuring): mm: 0.008(according to VDI/DGQ 3441): in: 0.0003 P max on B,C Axes (option) direct measuring): in: 8(According to VDI/DGQ 3441) Measuring System (Input Accuracy) Direct: mm/in: 0.0001/3.94 x 10-6
| ||
