| Stockcode | : | 665457 |
| Type | : | Boring |
| Subtype | : | Vertical |
| Manufacturer | : | GIDDINGS & LEWIS |
| Model | : | BORER 1220MM |
| Year | : | - |
| Price | : | P.O.A. |
| Description | : | |
|

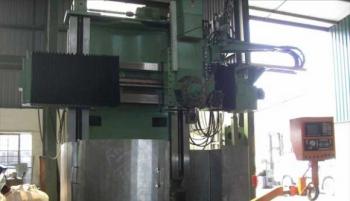

Giddings & Lewis CNC Vertical Borer 1220mm Elevating Rail Machine
The machine was completely rebuilt by Giddings & Lewis. They stripped the electrics of it and it was then sold as a carcus to a private company. The machine has been fitted with new servo motors / drives, spindle motor & drive, NUM 1060 CNC, new electrics, etc. The machine has hardly been used as it is too small for the type of work he does. The machine can be inspected under power in South Africa. Specification NUM 1060 CNC Control Chuck Diameter 1220mm Facing Capacity 1525mm Maximum Swing 1572mm Height under the rail 1830mm Travel of Rail 1220mm Traverse rate – Rail Head 6350mm/min Table Speed 4-333rpm Table drive 56KW Programmable Tool Turret 5 station Tool Turret Turret Coolant Ram Travel 915mm Travel right of centre +/- 940mm Travel left to centre +/- 915mm Electrics 415V/3PH/50HZ | ||
