| Stockcode | : | 665455 |
| Type | : | Gear |
| Subtype | : | Gear Shaper Cutter |
| Manufacturer | : | LORENZ |
| Model | : | MSC 60 CNC |
| Year | : | - |
| Price | : | P.O.A. |
| Description | : | |
|

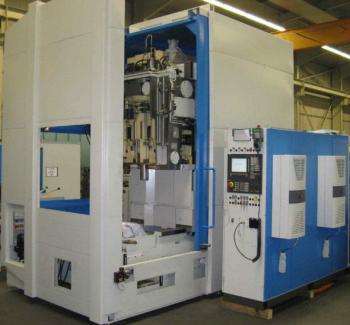

Model MCS 60 9-Axis “CNC” Gear Shaping Machine, suitable for the shaping of spur and helical gears (with special helical guide), pinions, splines, and other work-pieces of similar profile up to 700 mm diameter and 190 mm face-width. The follow remanufacturing and CNC retrofit works.
Siemens 840D 9 CNC Axis CNC Control Working axis X Radial movement of the column slide 0,000 + 620,000 mm C Rotary movement of the cutter spindle ± 360 degrees D Rotary movement of the work table ± 360 degrees O Cutter spindel stroke ± 360 degrees Adjustment axis: Y Lateral column offset -30,000 + 30,000 mm Z Vertical movement of the cutter-head slide 352,500 725,500 mm L Stroke length adjustment 1,000 205,000 mm A Adjustment of relief amount and relief direction – 1,000+ 1,000 mm Q Adjustment of cuter spindle perpendicularity – 10,000 + 10,000 mm (only for adjusting, no acuraty axis) Technical Data of MCS60 CNC External cutting: Max. outer diameter 750 mm Internal cutting: Max. internal diameter 700 mm Max. workpiece outer diameter 750 mm Max. module 10 (12) mm Max. stroke length 205 mm Stroke steplessly adjustable 15 – 630 DH/min Max. strok position movement 400 mm Center distance table / stroke spindle 0 – 620 mm Table diamter 650 mm Table boring 200 mm Max. table load 1500 kg Bore diameter of cutter fixing 69,85 SK50 mm Spindle diameter 115 mm weight 18.300 kg Dimensions of machine (L x W x H) 4700 x 2860 x 3850 mm Motor Stroke drive 35 kW Connecting load 110 kVA Air connection 5 – 7 bar We would like to inform, that the listed movings by the workpiece and tool dimensions, cutting data and workpiece-dependent machine models can be optionally restricted. Accessories • Full protection cabinet • hydraulic cooling system • magnetic chip conveyor • straight spur guide • quick cutter clamping facility w/compressed • air clean-out for tapered tool holder | ||
