| Stockcode | : | 665454 |
| Type | : | Gear |
| Subtype | : | Gear Shaper Cutter |
| Manufacturer | : | LORENZ |
| Model | : | MSC 40 CNC |
| Year | : | - |
| Price | : | P.O.A. |
| Description | : | |
|

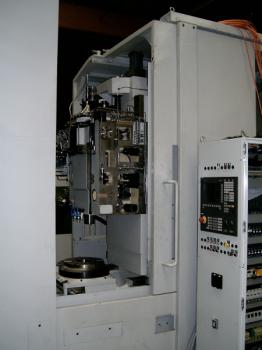

Model MCS 40 6-Axis “CNC” Gear Shaping Machine, suitable for the shaping of spur and helical gears (with special helical guide), pinions, splines, and other work-pieces of similar profile up to 400 mm diameter and 120 mm face-width.
The machine is execute with following 7 CNC axis: Working Axes: X Radial motion column slide C Rotary motion cutting spindle D Rotary motion work piece table O Stroke motion cutting spindle Set-up Axes: Y column side shift (Option) Z Vertical motion cutting head slide L Adjustment stroke length Accessories Full protection cabinet Hydraulic cooling system Magnetic chip conveyor Straight spur guide Quick cutter clamping facility w/compressed Air clean-out for tapered tool holder Technical Data External gear Outer diameter 400mm Tooth length 120mm Workpiece weight 1000kg Internal gear Inner diameter 400mm Workpiece passage 500mm Tooth length 120mm Work piece weight 1000kg Weight of machine total 14400kg Dimensions (H x W x D) 3400 x 2693 x 4650 mm Pneumatic connection 5 – 7bar | ||
