| Stockcode | : | 665453 |
| Type | : | Gear |
| Subtype | : | Generators |
| Manufacturer | : | KLINGELNBERG |
| Model | : | AMK630 CNC |
| Year | : | - |
| Price | : | P.O.A. |
| Description | : | |
|

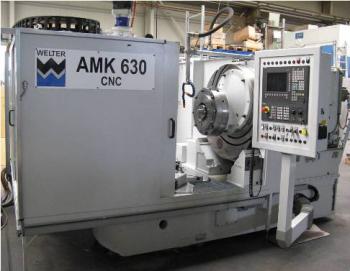

Klingelnberg AMK630 CNC Hypoid Spiral Bevel Gear Generating Machine
The machine is suitable for the cutting of midium size range spiral bevel, Zerol bevel, or hypoid pinions and mating gears, up to 630 mm maximum gear diameter The machine is completely retrofitted in conditions and tolerances as a new machine with new electrics, hydraulics and lubrication. The machine corresponds to the hereto attached copy of factory literature, and is being offered with new generation SIEMENS ¡§840 D¡¨ controls with 12 months limited warranty. Application : Cutting of spiral bevel pinion and gears without and with Hypoid offset Cutting of frontal curvic couplings Standard equipment : Cutter head for soft cutting, optional for hard skiving HPG-S method Workpiece column with single start double-worm drive for workpiece motion High precision encoder for Plunge feed (X-Axis) Full enclosure Coolant system with magnetic chip conveyor Hydraulic and central lubrication system Hydraulic workpiece clamping system (stroke 10 mm) Electro-magnetic operator door locking system Automatic rectrac at power failure Digital control of the clamping stroke Standard accessories : One Set of operator tools Full documentation in for : Mechanics, Hydraulics, Lubrications Electrics, CNC, Motors and drives, PLC program Electrical Equipment : CNC Siemens 840 D Conversational programming Special Equipment : Coolant flow control Hydraulic workpiece spindle clamping for cutting of the gears Thermical compensation device Oil dust exhaustor Oil coolant device Technical Data : Max. outside diameter of gear 630mm Normal module range 2,2 ¡V 12mm Max. permissible tooth width 120mm Number of Teeth 6 to 120 Min./ max pitch cone angle range 0 ¡V 90dregress Max. transmission ratio 10 Max. axial offset „b 100mm Max. machine distance (MD) 280 (315) mm Diameter of Workpiece spindle (can be increased if desired) 150mm Insert cutter head radius 55, 100, 135, 170, 210mm Speeds and feeds : Cutter speeds 25 to 225rpm Speed of generating axis 1 ¡V 50 ¢X/min Plunging feed (X- Axis) 0,10 to 5,0mm/min Machine : Floor space required (approx.) 4720 x 2400 x 2320mm Machine net weight (approx.) 15.800 kg Voltage 400V/AC Frequency 50Hz Total connected Load 50kVA | ||
