| Stockcode | : | 665452 |
| Type | : | Gear |
| Subtype | : | Hobbers |
| Manufacturer | : | LIEBHERR |
| Model | : | LC1002 |
| Year | : | 2011 |
| Price | : | P.O.A. |
| Description | : | |
|

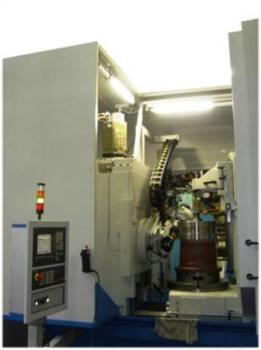

6 Axis Vertical Hobbing Machine
New in: 1987/2011 Siemens 840D CNC Control X Axis – Radial Z Axis – Axial Y Axis – Shifting A Axis – Hob Head Swivelling B Axis – Hob Drive C Axis – Work Table Max. Wheel Diameter 1000mm Gear Width 700mm Max Module 16 Max. Axial offset 800mm Table diameter 710mm Table hole 180mm Distance hob-workpiece axis 40 – 610mm Shifting 200mm Max. Cutter diameter / length 240 / 300mm Hob turning speeds 36 – 360rpm Milling tool taper 50ISO Milling drive motor 31kW Axial feed 0,1 – 20mm/WU Tangential Adjustment 0,01 – 5mm/WU Radial feed 0,01 – 4mm/WU Rapid travel X / Y / Z 2000 / 3000 / 1000mm/min Connected load 78kVA Machine weight 16000kgs Machine dimensions 5300 / 2100 /3750mm Additional Information: The machine is designed for maximum performance and accuracy in flexible manufacturing, for example, spur gears, helical & double helical wheels, drive wheels for trucks and construction machinery, gears and sprockets for performance gears, storage etc. The program covers about 100 workpiece programs. Other Features: 6 axis CNC control, system MPST (Metric & Inches), freely programmable, fault diagnosis, help button. Integrated electronic gear box (monitoring the synchronization of cutters and table turn). Cutter quick change system and fully guarded complete cutter arbors. | ||
