| Stockcode | : | 665364 |
| Type | : | Boring |
| Subtype | : | Floor Type |

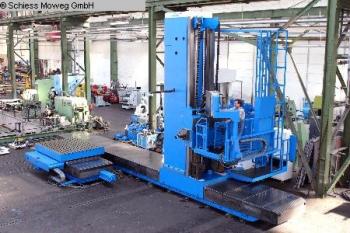

| Manufacturer | : | SCHARMANN |
| Model | : | HEAVYCUT 1.1 |
| Year | : | 1983 |
| Price | : | P.O.A. |
| Description | : | |
|
spindle diameter 150 mm
x-travel 9500 mm y-travel 3000 mm ram stroke 800 dimension of the ram 325 x 325 mm spindle stroke 700 mm table surface area 2500 x 2000 mm table load 20 t b-axis 360 ° V-axis 2000 mm spindle taper ISO 50 spindle turning speed range 2,5 - 1250 U/min feed range 1 - 6000 mm/min rapid traverse 8 m/min T-slots 28 H7 rapid power traverse circular 2,4 1/min total power requirement 80 kW weight of the machine ca. 70 t dimensions of the machine ca. 15 x 8,5 x 7 m | ||
| View all |
|
SCHARMANN (5) HEAVYCUT 1.1 (1) Boring (92) Floor Type (11) |
Germany
    |  |
