| Stockcode | : | 665150 |
| Type | : | Gear |
| Subtype | : | Hobbers |
| Manufacturer | : | MODUL |
| Model | : | SW8000 |
| Year | : | 2010 |
| Price | : | P.O.A. |
| Description | : | |
|
Seimens SINUMERIK 840D CNC Control

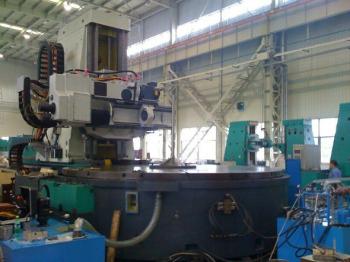

MODUL Gear Hobbing Machine, model SW 8000, based on the gear hobber Y31800C. Table unit and high-capacity hob head are manufactured in Germany. Modul offers the latest technical design along with CNC control Siemens SINUMERIK 840 D. Technical data Max. workpiece-Ø 8000 mm Min. workpiece-Ø 2400mm (after demounting of add. Table) Axial travel 1000 mm Table-Ø 4460 mm Additional table-Ø 7000 mm Table bore-Ø 800 mm Max. table load 100ton (without add. Table and workpiece support) X-Axis – Radial feed Y-Axis – Tangential feed Z-Axis – Axial feed A-Axis – Inclinability of hob head B-Axis – Cutter drive C-Axis – Table drive High perfomance hobbing head AWK M40T Module hobbing 40 mm Module single indexing 50 mm Swivel angle 30 ° Hob-Ø 500 mm Cutter-Ø (disc tool) 540 mm Tangential travel 600 mm Cutter arbor adaptor SK 60 Cutter drive 10 – 125 rpm Main power 82 kW Dimensions: Length 14m x Width 6.1m x Height 5.5m x Weight 173ton | ||
