| Stockcode | : | 665149 |
| Type | : | Gear |
| Subtype | : | Hobbers |
| Manufacturer | : | MODUL |
| Model | : | ZFWZ 03 |
| Year | : | 2012 |
| Price | : | P.O.A. |
| Description | : | |
|

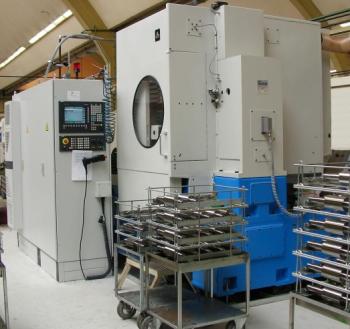

Modul ZFWZ 03 CNC Vertical Gear Hobbing Machine
Rebuild: 2012 Siemens 840D CNC Control Max. Workpiece diameter 315mm Max Module 8mm Axial feeding travel 280mm Radial feeding travel 280mm Tangential feeding travel 160mm Helix angle 45 Grad Table diameter 380mm Max. Hob diameter 160mm Max. Hob length 200mm Table speeds 50rpm Hob speeds 50 – 400rpm Axial feed 0 – 10mm/rpm Tangential Adjustment 0 – 2mm/rpm Radial feed 0 – 5mm/rpm Rapid travel X / Y / Z 1400 / 2000 / 700mm/min Machine weight 9000kgs Machine dimensions L x W x H 3500 / 3750 /2500mm Complete With: Chip conveyor Fully enclosed guarding Manuals | ||
