| Stockcode | : | 665147 |
| Type | : | Gear |
| Subtype | : | Hobbers |
| Manufacturer | : | MODUL |
| Model | : | ZFWZ 08 |
| Year | : | 2011 |
| Price | : | P.O.A. |
| Description | : | |
|

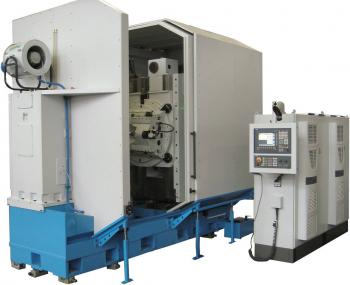

Modul ZFWZ 08 CNC Vertical Hobbing Machine
New in: 1990/2011 Siemens 840D CNC Control Max. Workpiece diameter 800mm Max Module 14 Axial feeding travel 560mm Tangential feeding travel 220mm Helix angle 45 Grad Table diameter 800mm Table hole 275mm Table hole depth 230mm Max. Table load 1800kgs Distance hob axis & table surface 300 – 860mm Distance hob axis & table axis 100 – 580mm Max. Cutter diameter / length 300 / 320mm Range of speeds 20 – 320rpm Axial feed 0,10 – 10mm/WU Tangential Adjustment 0,10 – 2mm/WU Radial feed 0,10 – 5mm/WU Machine weight 11000kgs Machine dimensions 5000 / 4130 /3600mm Additional Information: New Control, New Drive technique: SIMODRIVE 611 digital, New electrics and cabinet, 8 technical working programs, New Hydraulic system, New Lubrication unit and a complete mechanical overhaul. Complete With: Hob Arbor Chip conveyor Fully enclosed guarding Manuals | ||
