| Stockcode | : | 665141 |
| Type | : | Gear |
| Subtype | : | Hobbers |
| Manufacturer | : | PFAUTER |
| Model | : | PA 320 |
| Year | : | 2011 |
| Price | : | P.O.A. |
| Description | : | |
|

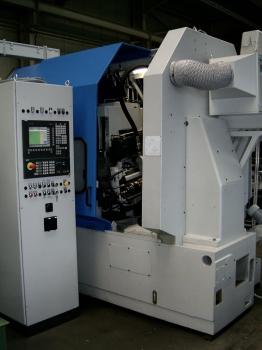

6 AXIS CNC VERTICAL GEAR HOBBING MACHINE
New in: 1985/2011 Siemens 840D CNC Control X Axis – Radial Z Axis – Axial Y Axis – Shifting A Axis – Hob Head Swivelling B Axis – Hob Drive C Axis – Work Table Max. Wheel Diameter 350mm Gear Width 220mm Max Module 8 Max. Axial travel of hob slide 250mm Number of teeth 6/120 Shifting 170 Max. Hob head swivel +30 / -40 Grad Max. Cutter diameter / length 163mm / 230mm Milling arbour diameter 27mm / 32mm / 40mm Centre Distance betw. Workpiece-tool min / max40mm / 265mm Table diameter 300mm Hob turning speeds 120 – 300rpm Rotary table speeds infinitely variable 1 – 55rpm Axial feed 0,25 – 10mm/wu Radial feed 0,10 – 10mm/wu Rapid travel X / Y / Z 2000mm/min / 750mm/min / 2000mm/min Electrics 400 – T50Hz V Connected load 55Kva Machine weight 9400kgs Complete With: Oil Mist Filtration Unit Chip Conveyor 1 Set of Hob Arbors New Electrics New Hydraulic Lubrication System Full Guarded Oil mist Exhauster (option) | ||
