| Stockcode | : | 664717 |
| Type | : | Saws |
| Subtype | : | Coldsaw |
| Manufacturer | : | WAGNER |
| Model | : | WAS 90R |
| Year | : | 1996 |
| Price | : | P.O.A. |
| Description | : | |
|

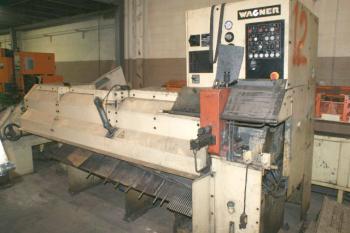

One Used Wagner Model WAS 90R Fully Automatic Hydraulic Cold Saw
With 24 Loading Magazine & RSA NN2000A Double Brush Deburrer Year: 1996 Stock No: 8476 Saw Specifications: Cutting range: 10-3/4 blade 12-1/2 blade Round solid stock: 5/8 2-3/4 --------------- Normal & thick walled tube: 5/8 2-3/4 5/8 3-1/2 Thin walled tubes (form jaws required): 5/8 2-1/4 5/8 3-1/8 Square solid: 5/8 2-1/4 --------------- Square tube: 5/8 2-1/4 5/8 3-1/8 Flat solid minimum: 5/8 5/8 --------------- Flat solid maximum: 2-3/4 2-1/4 --------------- Profiles: 4-1/2 2-1/8 4-1/2 x 3 Cutting speeds: 32-320 fpm 37-370 fpm Horsepower: 2.4/3.6 Saw blade advance: 1 80 IPM (infinitely variable) Rapid return: 395 IPM Cut length: 1.37 80 24 foot Loading table adaptable to material shapes round, square or rectangular by means of adjustable angle of inclination on the support rails. Loading levers raise and orient various material shapes on the roller tract in ready-to- cut position. Bar-feed-carriage, conveying speed is infinitely variable up to 130 feet per minute resulting in short idle times on long cut-offs. Length gauge is hydraulically cushioned with fine adjustment within .004 and is adjustable from 1.37 80 Remnant ends and trim cuts are sorted from good cuts by means of sorting gate at cut-off side Cut pieces are ejected into the infeed of the deburring system Recirculating flood coolant system RSA NNC1000M Double Brush Deburrer: Capacity: 5/8 3-1/2 round 5/8 3-1/8 square 5/8 x 5/8 4-1/2 x 3 rectangular Workpiece length: 4 - 80 Brush dimensions: 10 diameter x 12 long | ||
