| Stockcode | : | 664399 |
| Type | : | Grinding |
| Subtype | : | Universal |
| Manufacturer | : | KELLENBERGER |
| Model | : | UR 175-1500 |
| Year | : | 2011 |
| Price | : | P.O.A. |
| Description | : | |
|
Grinding diameter 350 mm

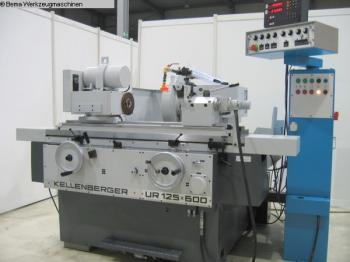

Grinding length 1500 mm Peak height 175 mm Grinding wheel diameter 400 mm Grinding wheel width 50 mm Drilling 127 mm Workpiece spindle taper MK5 Workpiece spindle speed 20-400 U / min Workpiece spindle - bore mm Workhead swivel 360 ° Wheelhead swivel 180 + - ° Spindle speed 1500,1700,2200 rpm / Delivery hubweise 0 to 9.99 mm / Ø Delivery of continuously 0 to 9.99 mm / Ø Table tiltable ± 8 ° Longitudinal movement of table 700 mm Table speed 0.02 to 6 m / min Workpiece weight between centers 130 kg Crosscut max. 270 mm Workpiece weight fly .- 130 kg including power sandable hole mm Grinding depth mm Internal spindle taper 80 mm Taper in tailstock MK 3 Quill 30 mm Total power requirement 6.5 kW Machine's weight about 3.6 t Space about 5.48 x 2.0 m Additional Information Photo of already delivered machine with possibly other options. Painted Geometric overhauled and new. Digital display in two axes. Resolution x-axis 0.5 my options: encoder with digital display in the workpiece spindle encoder with digital display in the grinding spindle head (no height adjustment with spindle possible) -New stable internal grinding device diameter 80mm or 100mm of height adjustment. the peak height at maximum elevation. 225mm fan speed control for spindle Includes: -New DGS paper band filter operating tool -clamping tube for feed -center MT3 -peak MK5 -chuck . Other accessories on request machine features in the x-axis through an electronically-controlled delivery system with stepper motor drive. Hydraulic table longitudinal and . rapid traverse Wide range of applications in production at the external cylindrical and internal grinding, or for the external, internal and face grinding in one set of parts. Available options: -Semi-automatic dressing cycles for the outer and inner loops .-automatic dressing compensation -measurement control | ||
