| Stockcode | : | 663145 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |

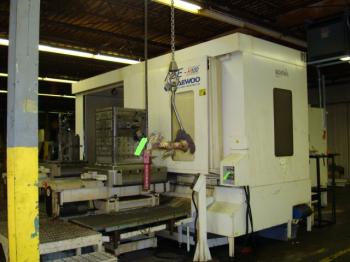

| Manufacturer | : | DAEWOO |
| Model | : | ACE H100 |
| Year | : | 2000 |
| Price | : | P.O.A. |
| Description | : | |
|
Pallet Size 39.4" X 39.4"
Number of Pallets 2 Table Load Capacity 4400 LBS. Axis Travel X - Axis 78.70" Y - Axis 49.70" Z - Axis 49.70" Pallet Top To Spindle Center 2.9"-52.6" Pallet Center To Spindle Nose 7.9"-47.3" Table Indexing 1 Degree Spindle Torque 1,112 FT-LBS. Spindle Drive Motor 25 HP AC Spindle Gear Ranges 3 Spindle Taper Cat #50 Spindle Speeds 4500 RPM Rapid Traverse Rate 480 IPM X,Y,Z Auto Tool Change Capacity 90 ATC Machine Weight 60,000 LBS Floor Space 255" x 276" x 141" Equipped With: Fanuc 16MC CNC Control Coolant Thru The Spindle Chip Augars Chip Conveyor All Manuals ONLY 4333 CUTTING | ||
| View all |
|
DAEWOO (20) ACE H100 (1) CNC Machining Centres (475) Horizontal (148) |
United States
    |  |
