| Stockcode | : | 662740 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |

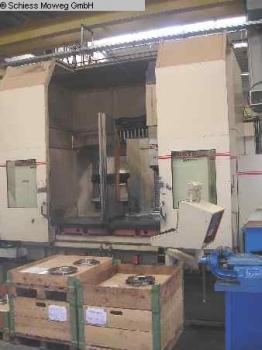

| Manufacturer | : | NORTE-KLESSMANN |
| Model | : | VS 4000 |
| Year | : | 1988 |
| Price | : | P.O.A. |
| Description | : | |
|
x-travel 2000 mm
y-travel 650 mm z-travel 600 mm control SIEMENS 850 M table surface area 2120 x 710 mm no. of flutes 5 spindle diameter 100 mm tool taper ISO 50 spindle bore 150 mm spindle drive motor 28,00 kW spindle turning speed range 20 - 5000 U/min tool change unit 54 Werkzeugplätze distance spindle nose and table 200 - 800 mm rapid motion -longitudinal/cross/vertical 14,00 m/min connected load 70,00 kVA tool length - max. 400 mm workpiece diameter at full load 110 mm wotkpiece diameter with 2 vacant positions 220 mm weight of tools max. 15 kg table load max. 3,00 t total power requirement 50,00 kW weight of the machine ca. 20,00 t dimensions of the machine ca. 5,20 x 4,60 x H3,90 m | ||
| View all |
|
NORTE-KLESSMANN (1) VS 4000 (1) CNC Machining Centres (475) Vertical (370) |
Germany
    |  |
