| Stockcode | : | 662418 |
| Type | : | Milling |
| Subtype | : | Knee & Column |

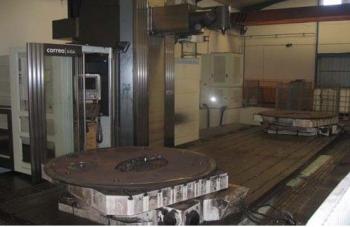

| Manufacturer | : | CORREA |
| Model | : | AXIA 85 |
| Year | : | 2008 |
| Price | : | P.O.A. |
| Description | : | |
|
Table: 8,500 x 2,250 x 300 mm.
Max workpiece weight: 10,000 Kg/m. X-travel: 8500 mm Y-travel: 1500 mm Z-travel: 2000 mm Rapid feeds: 30 m/min Taper: ISO 50 Spindle speed: 6,000 rpm A/C axis travel: 2 x 3600 x 0.1º Total power: 60 kW Dimensions of the machine: 15 x 7.5 x 4.1 m Weight of the machine: 45 Ton Rotary table: (2-off) 1750 x 1500 mm Max weight on table: 12,000 Kg Indexing table: 360,000 x 0.001º ATC: 40-station CNC: iTNC Heidenhain 530 Additional information: Coolant equipment of tools, Heidenhain TS-230 measurement and tools touch probes, Heidenhain TT-130 Measurement for pieces touch probes, Splash guard for working in two areas or one area (Pendular) | ||
| View all |
|
CORREA (6) AXIA 85 (1) Milling (341) Knee & Column (6) |
Spain
  |  |
