| Stockcode | : | 660664 |
| Type | : | CNC Lathes |
| Subtype | : | Select a subtype |
| Manufacturer | : | MAZAK |
| Model | : | QT-20HP |
| Year | : | 1998 |
| Price | : | P.O.A. |
| Description | : | |
|

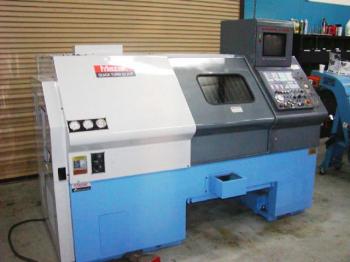

MAZAK, QT-20HP, CNC LATHE
New : 1998 SPECIFICATIONS: MAXIMUM SWING: 17.32" MAXIMUM CUTTING DIAMETER: 10" MAXIMUM MACHINING LENGTH: 19.7" X AXIS TRAVEL: 7.125" Z AXIS TRAVEL: 20.125" RAPID TRAVERSE RATES (X,Z): 1200 IPM/1300 IPM SPINDLE SPEED: 40 ~ 4000 RPM SPINDLE NOSE: A2 - 8 HOLE THRU SPINDLE: 3.15" MAXIMUM BAR WORK: 2.75" NUMBER OF TOOL: 8 POSITION TURRET TURRET INDEXING CHIP TO CHIP(ONE STEP/FULL): .35/ .72 SEC. TAILSTOCK SPINDLE CENTER/SPINDLE DIAMETER: MT#4/3.15" QUILL TRAVEL: 5.1" TAILSTOCK BODY TRAVEL: 18.11" MAIN MOTOR: 20 HP MACHINE DIMENSIONS: 105" X 68.5" X 73.1" MACHINE WEIGHT: 9,600 LBS. ESTIM. EQUIPPED WITH: -MAZATROL T-PLUS CNC CONTROL -VELOCITY & FEEDRATE CONTROL -TOOL PATH STORAGE -HYDRAULIC UNIT -WORK LIGHT -COMPLETE COOLANT SYSTEM -CHIP & COOLANT SPLASH GUARDING (FULL COVERAGE) -COLLET TYPE CHUCK -PROGRAMMABLE TAILSTOCK WITH LIVE CENTER -AUTOMATIC TOOL EYE: TOOL SETUP / TOOL WEAR COMPENSATION / TOOL BREAKAGE DETECTION -AUTOMATIC PARTS CATCHER -CHIP CONVEYOR - SIDE DISCHARGE HINGE-TYPE -LNS QUICK LOAD BARFEED | ||
