| Stockcode | : | 660656 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |
| Manufacturer | : | AWEA |
| Model | : | VP-2012 |
| Year | : | 1997 |
| Price | : | P.O.A. |
| Description | : | |
|

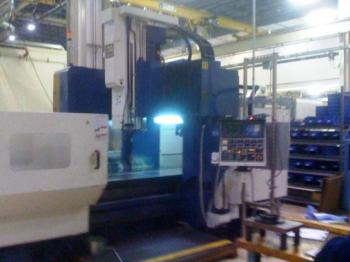

AWEA, VP-2012, 78.7" X, 47.2" Y, 30.0" Z, FANUC 18M CNTRL,NEW: 1997 & 1999
SPECIFICATIONS TRAVELS: -X-AXIS:78.7" -Y-AXIS: 47.2" -Z-AXIS:30.0" DISTANCE BETWEEN COLUMNS: 51.5" HEIGHT UNDER BRIDGE: 39.5" TABLE SIZE: 78.7" X 43" TABLE LOAD CAPACITY: 9,745 LBS. SPINDLE NOSE TO TABLE:7.8"-37.8" SPINDLE CENTER TO COLUMN: 51.2" SPINDLE SPEED, MAX. RPM: 5000 RPM SPINDLE DRIVE MOTOR: 30 HP / 20 HP SPINDLE TAPER:CAT 50 TOOL CHANGER:30 ATC RAPID TRAVERSE, X,Y AXES: 787 IPM RAPID TRAVERSE, Z-AXIS:590 IPM CUTTING FEED, X,Y,Z AXES:315 IPM MAX. TOOL SIZE:6" X 13.8" MAX. TOOL WEIGHT:33 LBS TOOL CHANGE TIME:6 SECONDS MACHINE DIMENSIONS L/W/H:220"/130"/140" APPROX. WEIGHT:35,300 LBS. EQUIPPED WITH -ELECTRO MAGNETIC CHUCK (MAY BE REMOVED) -FANUC 18M CNC CONTROL -30-POSITION AUTOMATIC TOOL CHANGER -RAM-TYPE SPINDLE -CHIP CONVEYOR | ||
