| Stockcode | : | 660065 |
| Type | : | Sheet Metal |
| Subtype | : | Press Brakes CNC |
| Manufacturer | : | TRUMPF |
| Model | : | TRUBEND 5230 |
| Year | : | 2008 |
| Price | : | P.O.A. |
| Description | : | |
|

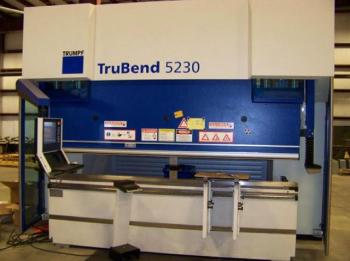

TRUMPF, TRUBEND 5230, 253Ton, TASC 6000 CNTRL, NEW: 2008
SPECIFICATIONS: PRESS FORCE:253 TONS BENDING LENGTH:127 IN. WIDTH BETWEEN COLUMNS:106 IN. EFFECTIVE INSTALLATION HEIGHT:24 IN. THROAT:16.5 IN. OPERATING HEIGHT (FOR 4" DIE): 43.5 IN (VALUDE DEPENDS ON WEDGE SIZE) INCLINATION OF BEAM:± 0.4 IN. Y RAPID TRAVERSE:520 IPM Y WORKING:23.5 IPM Y RETURN TRAVERSE:520 IPM X AXIS: 2362 IPM R AXIS: 780 IPM Z AXIS: 2362 IPM WORKING RANGE -Y AXIS STROKE:17.5 IN. -TRAVEL PATH X AXIS:23.5 IN. -MAX. GAUGE AREA IN X:34 IN. -TRAVEL PATH R AXIS:10 IN. CONTROL TASC 6000 LENGTH X WIDTH X HEIGHT:168 X 77 IN. X 126” WEIGHT:36,156 EQUIPPED WITH: UPPER HYDRAULIC CLAMPING CNC CROWNING EXTENDED HEIGHT AND STROKE 6-AXIS BACK GAUGE 3D VISUALIZATION TRUTOPS BEND NETWORKING BENDGUARD SAFETY DEVICE ACB PREP 2 MANUAL FRONT SUPPORTS MOBILE CONTROL BAR CODE READER | ||
