| Stockcode | : | 660064 |
| Type | : | Sheet Metal |
| Subtype | : | Laser CNC |
| Manufacturer | : | TRUMPF |
| Model | : | TRULASER 5030 |
| Year | : | 2008 |
| Price | : | P.O.A. |
| Description | : | |
|

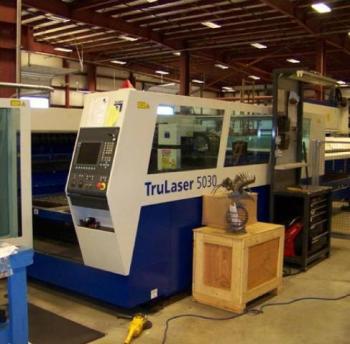

TRUMPF, TRULASER 5030, NEW: 2008
SPECIFICATIONS: WORKING RANGE: -X-AXIS:120” -Y-AXIS:60” -Z-AXIS: 4.5” WORKPIECE MAX WEIGHT:1984 LBS MAX. SPEEDS: PARALLEL AXIS: 7,872 IN/MIN SIMULTANEOUS: 11,811 IN/MIN TRUMPF CNC CONTROL: SIEMENS SINUMERIK 840D ACCURACY SMALLEST PROGRAMMABLE MEASUREMENT PATH: 0.00004 IN. POSITION DEVIATION PA: ± 0.001 IN. DIMENSIONS AND WEIGHT -LENGTH X WIDTH X HEIGHT: 437” X 181” X 95” -WEIGHT: 26,455 LBS MAXIMUM POWER: 5,000 W POWER RANGE, ADJUSTABLE IN 1% INCREMENTS: 250 – 5,000 W WAVELENGTH: 10.6 µM BEAM MODE: TEM CYCLE FREQUENCY: 10 HZ – 10 KHZ LASER GASES: CO2 | N2 | HE MAXIMUM SHEET THICKNESS -1 IN. MILD STEEL -0.8 IN. STAINLESS STEEL -0.5 IN. ALUMINUM ELECTRICAL POWER CONSUMPTION OF ENTIRE SYSTEM 33–72 KW EQUIPPED WITH: TRUFLOW 5000 RESONATOR PIERCELINE TIMED SHUTDOWN OIL SPRAY DEVICE LASER DIODE 9.0”, 7.5”, 5.0”, 3.75” CUTTING HEADS LIFT MASTER | ||
