| Stockcode | : | 660063 |
| Type | : | Sheet Metal |
| Subtype | : | Cutting and Laser CNC |
| Manufacturer | : | OMAX |
| Model | : | 2652 |
| Year | : | 2000 |
| Price | : | P.O.A. |
| Description | : | |
|

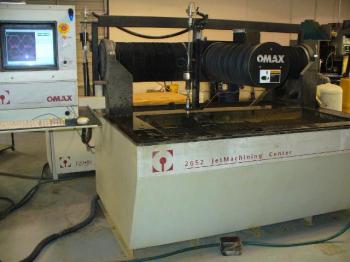

OMAX, 2652, NEW: 2000
SPECIFICATIONS: WORK ENVELOPE: X-Y TRAVEL: 26" X 52" TABLE SIZE: 30" X 69" ACCURACY OF MOTION AT 70 DEGREES F: BALL BAR CIRCULARITY (OVER 12") AT MAX. TRAVERSE VELOCITY: (+-) 0.003" REPEATABILITY: (+-) 0.0013" SQUARNESS: 0.0013" PER FT. STRAIGHTNESS: 0.0017" PER FT. BACKLASH: 0.0007" MAX. SPEED: 180 INCHES PER MINUTE STANDARD (4572 MM/MIN) DIMENSIONS: FOOTPRINT: 139" X 67" WEIGHT: 3,320 LBS HEIGHT: 95" OPERATING WEIGHT: 9,150 LBS (WITH WATER IN TANK) PUMP: HORSE POWER: 20 PSI: 40,000 DRIVE DESCRIPTION: CLOSED LOOP, DIGITAL DRIVES BRUSHLESS SERVO MOTORS PRE-LOADED BALL SCREWS, RECIRCULATING BALLS LINEAR BEARINGS WITH HARDENED, PRECISION GROUND WAYS CANTILEAVER Y-AXIS ON BRIDGE X-AXIS ELECTRICAL REQUIRMENTS: 3 PHASE, 380-480 VAC (+-)10%, 50-60 Hz EQUIPPED WITH: PC BASED CNC CONTROL OMAX 2040V PUMP | ||
