| Stockcode | : | 660061 |
| Type | : | Lathes |
| Subtype | : | MISCELLANEOUS |
| Manufacturer | : | OKUMA |
| Model | : | LC-40/1SC |
| Year | : | 1985 |
| Price | : | P.O.A. |
| Description | : | |
|

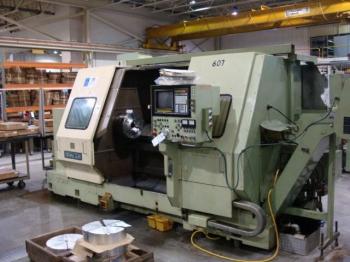

OKUMA, LC-40/1SC, OSP 5000L CNTRL, 15" Chk, 23.62" SWING, 15.75" CENTERS, NEW: 1985
SPECIFICATIONS: NOMINAL SIZE: 550 X 1500 MM NO. OF CONTROLLED AXIS: 2 (X &Z) SWING OVER BED: 23.62" MAX. TURNING DIA., CHUCKING WORK: 21.65" MAX. TURNING DIA., BETWEEN CENTERS WORK: 15.75" SPINDLE NOSE: A2-8 BORE DIAMETER: 3.54" RANGE OF SPINDLE SPEED: 10 TO 2500 RPM LONGGITUDINAL TRAVEL, Z-AXIS: 60" CROSS SLIDE TRAVEL, X-AXIS/2-AXIS: 200/400 IPM TURRET TYPE, NO. OF STATIONS: AUTO. VERT. V12 TAILSTOCK ( HYDRAULIC): -DIAMETER OF SPINDLE: 4.72" -SPINDLE TRAVEL: 5.91" -TAPER OF CENTER: MT NO. 6 MAIN SPINDLE DRIVE MOTOR: DC 50HP (30 MIN. RATING) APPROX. FLOOR SPACE: 93" X 180" APPROX. WEIGHT: 21,000 LBS. EQUIPPED WITH:. OSP 5000L CNC CONTROL 15" KITAGAWA 3-JAW HYD. CHUCK 12 STATION TURRET TAILSTOCK CHIP CONVEYOR ALL AVAILABLE TOOLHOLDERS AND TOOLING ALL AVAILABLE MANUALS | ||
