| Stockcode | : | 659968 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |

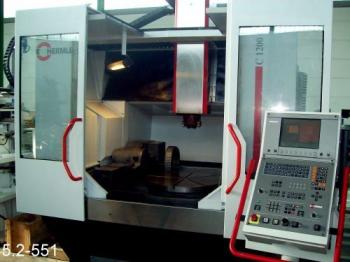

| Manufacturer | : | HERMLE |
| Model | : | TYPE C 1200 U |
| Year | : | 1999 |
| Price | : | € 109,000.00 EUR |
| Description | : | |
|
With CNC control Heidenhain TNC 430, NC-swivel-rotary table (4. & 5- axis), coolant through spindle (40 bar), electrical hand wheel, measuring feeler, electrical heat balancing, oil mist extraction device, chip glut pistol, enlargement of the ATC up to 87 places, chip conveyor, coolant device, cabin.
technical details: X-travel longitudinal 1200mm Y-travel vertical 900mm Z-travel cross 500mm spindle taper SK 40 spindle speed bis 8000 UpM /rpm no. of tool places ATC 87 max. Ø tool 80mm max. Ø tool if both side are free 125mm max. tool length 300mm max. tools weight 8kg chip to chip ca. 6,5 sec NC-swivel-rotary table- Ø800mm swivel range A-axis 15° -97° swivel range C-axis 360° drive capacity 44kW weight ca. 14.200 Kg | ||
| View all |
|
HERMLE (11) TYPE C 1200 U (1) CNC Machining Centres (475) Vertical (370) |
Germany
   |  |
