| Stockcode | : | 659634 |
| Type | : | Sheet Metal |
| Subtype | : | Cutting and Laser CNC |
| Manufacturer | : | OMAX |
| Model | : | 55100 CNC WATER JET |
| Year | : | 2005 |
| Price | : | P.O.A. |
| Description | : | |
|

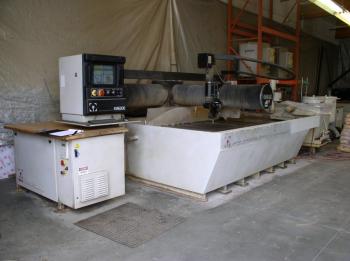

OMAX 55100 CNC WATER JET
EQUIPPED WITH: TILT-A-JET CUTTING HEAD NEW: 2005 GENERAL SPECIFICATIONS: WORK ENVELOPE: X-Y TRAVEL: 100" x 55" TABLE SIZE: 126" x 65" MATERIAL SUPPORT SLATS: 4" x 1/8" GALVANIZED STEEL MAX. MATERIAL LOAD: 250 LBS/SQ. FT. ACCURACY OF MOTION AT 70 DEGREES F: BALL BAR CIRCULARITY (OVER 12") AT MAX. TRAVERSE VELOCITY: (+-) 0.003" REPEATABILITY: (+-) 0.0013" SQUARNESS: 0.002" PER FT. STRAIGHTNESS: 0.003" PER FT. BACKLASH: 0.0007" MAX. SPEED: 180 INCHES PER MINUTE STANDARD (4572 MM/MIN) DIMENSIONS: FOOTPRINT: 155" X 94" WEIGHT: 8,000 LBS HEIGHT: 118" OPERATING WEIGHT: 22,000 LBS (WITH WATER IN TANK) PUMP: HORSE POWER: 30 PSI: 40k DRIVE DESCRIPTION: CLOSED LOOP, DIGITAL DRIVES BRUSHLESS SERVO MOTORS PRE-LOADED BALL SCREWS, RECIRCULATING BALLS LINEAR BEARINGS WITH HARDENED, PRECISION GROUND WAYS CANTILEAVER Y-AXIS ON BRIDGE X-AXIS ELECTRICAL REQUIRMENTS: 3 PHASE, 380-480 VAC (+-)10%, 50-60 Hz NOISE LEVEL: BELOW 80 dBA FOR SUBMERGED CUTTING EQUIPPED WITH: PC BASED CNC CONTROL TILT-A-JET CUTTING HEAD SOLIDS REMOVAL SYSTEM 3050V PUMP CHILLER | ||
