| Stockcode | : | 659314 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |
| Manufacturer | : | OKUMA |

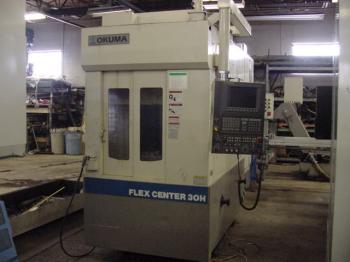

| Model | : | FLEX CENTER 30H |
| Year | : | 2002 |
| Price | : | P.O.A. |
| Description | : | |
|
MAX. MACHINING CAPACITY mm (in.) 500 × 350 × 300 (19.69 × 13.78 × 11.81)
TRAVEL X-axis (column right/left) mm (in.) 500 (19.69) Y-axis (spindle up/down) mm (in.) 350 (13.78) (+140 (5.51) ATC stroke) Z-axis (spindle front/back) mm (in.) 300 (11.81) Spindle center to table (pallet) upper surface mm (in.) 50 - 400 (1.97 - 15.75) Spindle end to table (pallet) center mm (in.) 120 - 420 (4.72 - 16.54) TABLE Table (pallet) size mm (in.) 320 × 320 (12.60 × 12.60) Index positions Standard 360 positions (1° increments, direct command) Optional 360000 positions (0.001° increments, direct command) Max. load capacity kg (lb) 200 (440) SPINDLE Spindle speed range minñ1 40 to 13000 Number of spindle speed ranges Infinitely variable Taper hole 7/24 Taper No.30 (BT) Spindle diameter (at front bearing) [standard (wide range, high speed)] mm (in.) φ50 (1.97) FEEDRATE Rapid feedrate (X-/Y-/Z-axis) mm/min (ipm) 60000 (1181.10) Jog feedrates (X-/Y-/Z-axis) mm/min (ipm)1 to 15000 (0.04 to 1574.80) ATC Tool shank MAS B.T.30 Pull stud bolt MAS2 Tool magazine capacity 24 tools Max. tool diameter With adjacent tools mm (in.) φ75 (2.95) Without adjacent tools mm (in.) Max. tool length mm (in.) 200 (7.87) Max. tool weight kg (lb) 3 (6.6) Tool selection Memory random Table indexing kW (hp) AC 2.0 (2.7) (1°) Magazine indexing (24-tool ATC) kW (hp) AC 0.75 (1) servomotor MACHINE SIZE mm (in.) MACHINE HEIGHT mm (in.) 2475 (97.44) FLOOR SPACE mm (in.) 1230 × 4735 (48.43 × 186.42) MACHINE WEIGHT kg (lb) 5000 (22000) EQUIPPED WITH: Coolant Through Spindle 725 psi Shower Coolant Prep and Interface for Fixture Hydraulics Splash Gun Tool Breakage Detection Chip Conveyor, Scraper with Drum Filter All Manuals on Disk | ||
