| Stockcode | : | 658940 |
| Type | : | Lathes |
| Subtype | : | Centre |

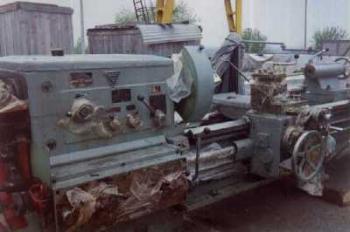

| Manufacturer | : | RYAZAN |
| Model | : | 1A65 |
| Year | : | - |
| Price | : | P.O.A. |
| Description | : | |
|
Maximum swing over cross slide 600 mm
Maximum swing over bed 1000 mm Distance between centers 2800 mm Spindle hole diameter 85 mm Number of spindle speeds 24 Spindle speeds range 5÷500 rpm Threads range, metrics 1÷120 mm Threads range, imperials 28÷1/4 rev/1'' Main motor power 22 kW Overall dimensions 5825x2100x1760 mm Weight of the machine 12500 kg Accessories - 2 pcs. rests - 1000 mm. faceplate - 400 mm. universal chuck - turning center - tailstock | ||
