| Stockcode | : | 658831 |
| Type | : | Sheet Metal |
| Subtype | : | Press Brakes CNC |
| Manufacturer | : | AMADA |
| Model | : | ASTRO 100MH |
| Year | : | 2000 |
| Price | : | P.O.A. |
| Description | : | |
|

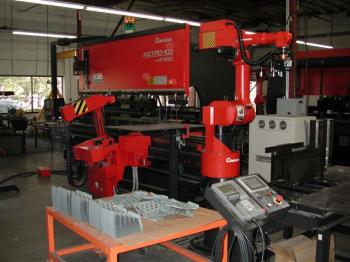

AMADA ASTRO 100MH ROBOTIC CNC PRESS BRAKE
NEW: 2000 SPECIFICATIONS DRIVE MOTORS: AC SERVO (5) MOTORS MAX. PART SIZE: 31.5" X 39.5" MAX. MATERIAL WEIGHT: 33 LBS FLANGE LENGTH REPEATABILITY: 0.004" GRIPPER SPECS: 2 STANDARD POWER REQUIREMENTS: 200 VAC , 30 KVS, 100A 3 PHASE AIR REQUIREMENTS: 30 FT./MIN @ 71 PSI " DIA. LINE MACHINE WEIGHT (X2): 27,496 LBS / 1,367 LBS OVERALL CRATED DIMENSIONS (X2): 16'5" X 9'4" X 11'1" 4'8" X 3'11" X 6'2" MAX. TONNAGE: 138 U.S. TONS BED LENGTH: 122" MAX. STROKE LENGTH: 5.9" OPEN HEIGHT: 16.5" THROAT DEPTH: 15.7" DISTANCE BETWEEN HOUSINGS: 106" RAM REPEATABILITY: +/- 0.0004" ANGULARITY ACCURACY: 0.25 APPROACH SPEED: 165" PER MIN BENDING SPEED: 2.4" TO 18" PER MIN PROGRAMMABLE RETURN SPEED: 212" PER MIN OVERALL MACHINE DIMENSIONS: 169"(L) X 100"(H) X 51"(W) HYDRAULIC OIL CAPACITY: 22 GALLONS MOVEMENT RANGE: L AXIS 19.6" R AXIS 5.9" FEED SPEED: L AXIS 1180" PER MIN MINIMUM COMMAND UNIT: 0.001" BENDS PER PROGRAM: 25 NUMBER OF AXES: 6 MAX. SHEET SIZE: 31.5" X 39.5" MAX. PART WEIGHT: 33 LBS EQUIPPED WITH EIGHT AXES OF CONTROL D1D2 RAM DEPTH; 0.1 RAM TILT MAX. L1L2 BACKGAUGE; 3" GAUGE TAPER MAX. R VERTICAL FINGER POSITION Z1Z2 HORIZONTAL FINGER MOVEMENT, SIDE TO SIDE CC RAM CROWNING CONTROL INPUT METHOD; KEYBOARD, FLOPPY DISK 12" COLOR VGA DISPLAY | ||
