| Stockcode | : | 658780 |
| Type | : | Grinding |
| Subtype | : | Tool & Cutter |
| Manufacturer | : | NOVATECH |
| Model | : | NOVAMATIC 2000 |
| Year | : | 2000 |
| Price | : | P.O.A. |
| Description | : | |
|

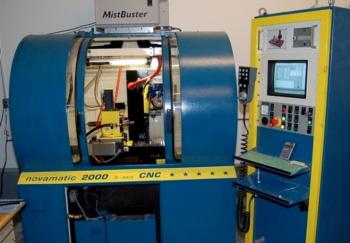

NOVATECH NOVAMATIC 2000
CNC GRINDER NEW: 2000 SPECIFICATIONS: LINEAR AXES PRELOADED LINEAR GUIDES ACCELERATED FEED RATES: 540" X-AXIS LONGITUDINAL: 11" Y-AXIS TRANSVERSE: 9.84" Z-AXIS VERTICAL: 6.7" ROTARY AXES C-AXIS- -WORKHEAD, BACKLASH FREE WORK GEAR TRANSMISSION: 40 RPM B-AXIS -GRINDING SPINDLE TURNTABLE,HARMONIC DRIVE GEAR: 160 DEGREES/SEC. C-AXIS ROTATION: 360 DEGREES B-AXIS ROTATION: 210 DEGREES WORKHEAD SPINDLE NOSE: ANSI CENTER HEIGHT: 5.9" GRINDING HEAD SPINDLE SPEEDS-INFINITELY VARIABLE: 0-9000 RPM SPINDLE NOSE SIZE: HSK-50 GRINDING WHEEL MAX. DIAMETER: 6" GRINDING WHEELS PER MOUNT: 1-3 GRINDING WHEEL BORE DIAMETER: 20MM CAPACITY MAX. TOOL DIAMETER: 4.33" MAX. LENGTH: 9.84" MAX. LENGTH WHEN GRINDING IN ON CHUCKING: 8.6" HELIX ANGLES: 90 DEGREES RH & LH GRINDING FROM SOLID IN ONE PASS, MAX. DIAMTER: 5/8" COOLANT SYSTEM FILTER PAPER SYSTEM WITH EAST FRONT AND BACK ACCESS 130 LITER/34 GALLON CAPACITY | ||
