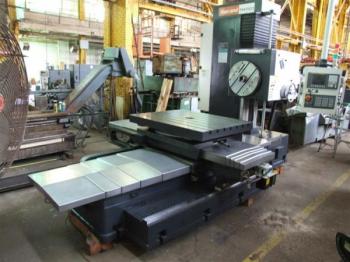

| Stockcode | : | 658396 |
| Type | : | Boring |
| Subtype | : | Table Type |
| Manufacturer | : | HANLAND |
| Model | : | TK 611 C |
| Year | : | 2008 |
| Price | : | P.O.A. |
| Description | : | |
|
DIAMETER OF SPINDLE ...................... 4.33" TAPER IN SPINDLE ......................... BT50 SPINDLE TRAVEL ........................... 21.65" TABLE WORKING SURFACE .................... 39.76" X 51.97" MAX. TABLE LOAD .......................... 11,000 LBS. HEADSTOCK VERTICAL TRAVEL ................ 35.43" DISTANCE SPINDLE CENTER TO TABLE TOP ..... 1.97" - 35.63" TABLE CROSS TRAVEL ....................... 47.24" TABLE HORIZONTAL TRAVEL .................. 51.18" MAX. BORING DIAMETER ..................... 9.45" MAX. DRILLING DIAMETER ................... 1.97" FACING HEAD RADIAL SLIDE TRAVEL .......... 6.3" VARIABLE SPINDLE SPEED RANGE ............. 12-1100 RPM VARIABLE FACING HEAD SPEED RANGE ......... 4-130 RPM SPINDLE FEED RANGE ....................... .0079 - 13.00 IPM RAPID TRAVERSE RATE ...................... 197 IPM MAX. MACHINING DIAMETER OF FACING HEAD ... 24.8" OVERALL DIMENSIONS ....................... 213"x125"x116" WEIGHT ................................... 26,400 LBSEQUIPPED WITH: - BUILT-IN T-SLOTTED ROTARY TABLE WITH 90DEG. SHOT-PIN AND GRADUATED SCALE - BUILT-IN FACING HEAD WITH CONTINUOUS FEEDS - BT50 POWER DRAW-BAR - BUILT-IN 4-WAY BED - SADDLE AND BED TELESCOPIC WAY COVERS - POWER RAPID TRAVERSE - FANUC OI-MATE CNC CONTROL, PENDANT MOUNT, RS-232 PORT, HAND WHEELS - 15/20 H.P. MAIN DRIVE MOTOR - 3/60/440 VOLT INPUTOPTIONAL: RIGHT ANGLE MILLING ATTACHMENT ..... $4,500.00 GUARANTEE: 1 YEAR | ||
