| Stockcode | : | 658385 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |

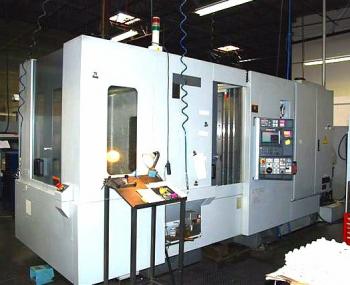

| Manufacturer | : | MORI SEIKI |
| Model | : | NH5000/40 |
| Year | : | 2003 |
| Price | : | P.O.A. |
| Description | : | |
|
Number of Pallets 2 Pallet Size 19.7" x 19.7" Axis Travel X - Axis 24.8" Y - Axis 26.4" Z - Axis 25.8" Max. Workpiece Swing Dia. 24.7" Table Surface To Spindle Center 2.0" - 25.8" Table Center To Spindle 3.9" - 30.3" Max. Workpiece Height 35.4" Max. Table Load 1,100 LBS. Table Indexing 1 Degree B-Axis Time 2.0 SEC. Rapid Traverse Rate X,Y,Z Axes 1968 IPM Spindle Speed Range 14,000 RPM Spindle Taper CAT# 40 Spindle Motor 30 HP AC Auto Tool Change 120 ATC Max Tool Length 15.7" Max Tool Dia. (adj.) 3.1"/7.0" Max Tool Weight 17.6 LBS" Tool Change Time (tool to tool) 1.0 Sec. Pallet Change Time 3.2 Sec. Machine Weight 27,800 LBS. Equipped With: FANAC MSG 501 CNC CONTROL AUTO CENTERING & MEASURING SYSTEM COOLANT THRU THE SPINDLE EXTENDED PART PROGRAM EDITING CHIP CONVEYOR SYSTEM RIGID TAPPING ALL AVAIALBLE MANUALS | ||
