| Stockcode | : | 658382 |
| Type | : | CNC Machining Centres |
| Subtype | : | Horizontal |
| Manufacturer | : | DAEWOO |

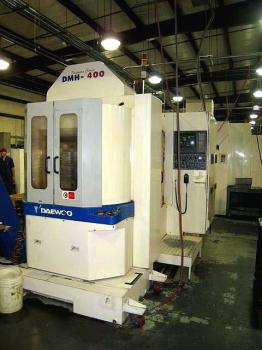

| Model | : | DMH-400 |
| Year | : | 2002 |
| Price | : | P.O.A. |
| Description | : | |
|
PALLET DIMENSION: 15.75" NUMBER OF PALLETS: 2 AXIS TRAVELS: X AXIS 24.3" Y AXIS 22" Z AXIS 22" PALLET INDEX: 1 DEGREE SPINDLE SPEED: 120 - 12,000 RPM SPINDLE TAPER: CAT 40 SPINDLE NOSE TO TABLE: 5.9" - 27.9" SPINDLE CENTER TO TOP: 1.97" - 24" NUMBER OF TOOLS: 60 ATC MAIN MOTOR: 25 HP SPINDLE TORQUE: 149 FT-LBS. RAPID TRAVERSE: 1181 IPM TOOL CHANGE TIME: 1.5 SECS. PALET LOAD CAPACITY: 882 LBS. PALLET CHANGE TIME: 5 SECS. MAX TOOL DIAMETER: 3.5"/5.51" MAX TOOL LENGTH: 11.81" MAX TOOL WEIGHT: 22 LBS. MACHINE DIMENSIONS: 122" x 105" x 110" MACHINE WEIGHT: 26,460 LBS. EQUIPPED WITH: FANUC 16iM CONTROL COOLANT THRU SPINDLE 60 TOOL ATC RIGID TAPPING AVAILABLE MANUAL | ||
| View all |
|
