| Stockcode | : | 658271 |
| Type | : | CNC Machining Centres |
| Subtype | : | Vertical |
| Manufacturer | : | SUPERMAX |

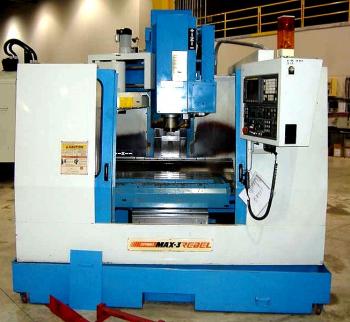

| Model | : | MAX-3 |
| Year | : | 1999 |
| Price | : | P.O.A. |
| Description | : | |
|
1999 (verify w/ mfg.) SPECIFICATIONS: TRAVEL X-AXIS: 40" Y-AXIS: 17.3" Z-AXIS: 24.8" SPINDLE NOSE TO COLUMN SURFACE: 4.72" TO 29.52" SPINDLE CENTER TO COLUMN SURFACE: 20.1" SPINDLE SPINDLE MOTOR: 7.5 / 10 HP SPINDLE TAPER: CT40 SPINDLE SPEED: 45 TO 8000 RPM TABLE TABLE SIZE: 37.4" X 15.7" T-SLOTS (3): 0.71" W X 4.92" DIA TABLE HEIGHT: 33.27" LOAD CAPACITY: 1,100 LBS FEED RAPID FEED RATE: 630 IPM (X & Y) 472 IPM (Z) CUTTING FEED RATE: 0.04 TO 196 IPM AXIAL RATED THRUST FORCE: 1,247 FT-LB NUMBER OF TOOLS IN ATC: 20 POWER: 208 - 240 VAC, 3 PH POWER CONSUMPTION: 18 KVA AIR: 80 PSI MIN., 1/2" SUPPLY WEIGHT: 10,120 LBS FLOOR SPACE: 111" D X 95" W X 111" H EQUIPPED WITH: Fanuc OM Control Rigid Tapping | ||
